42,90€

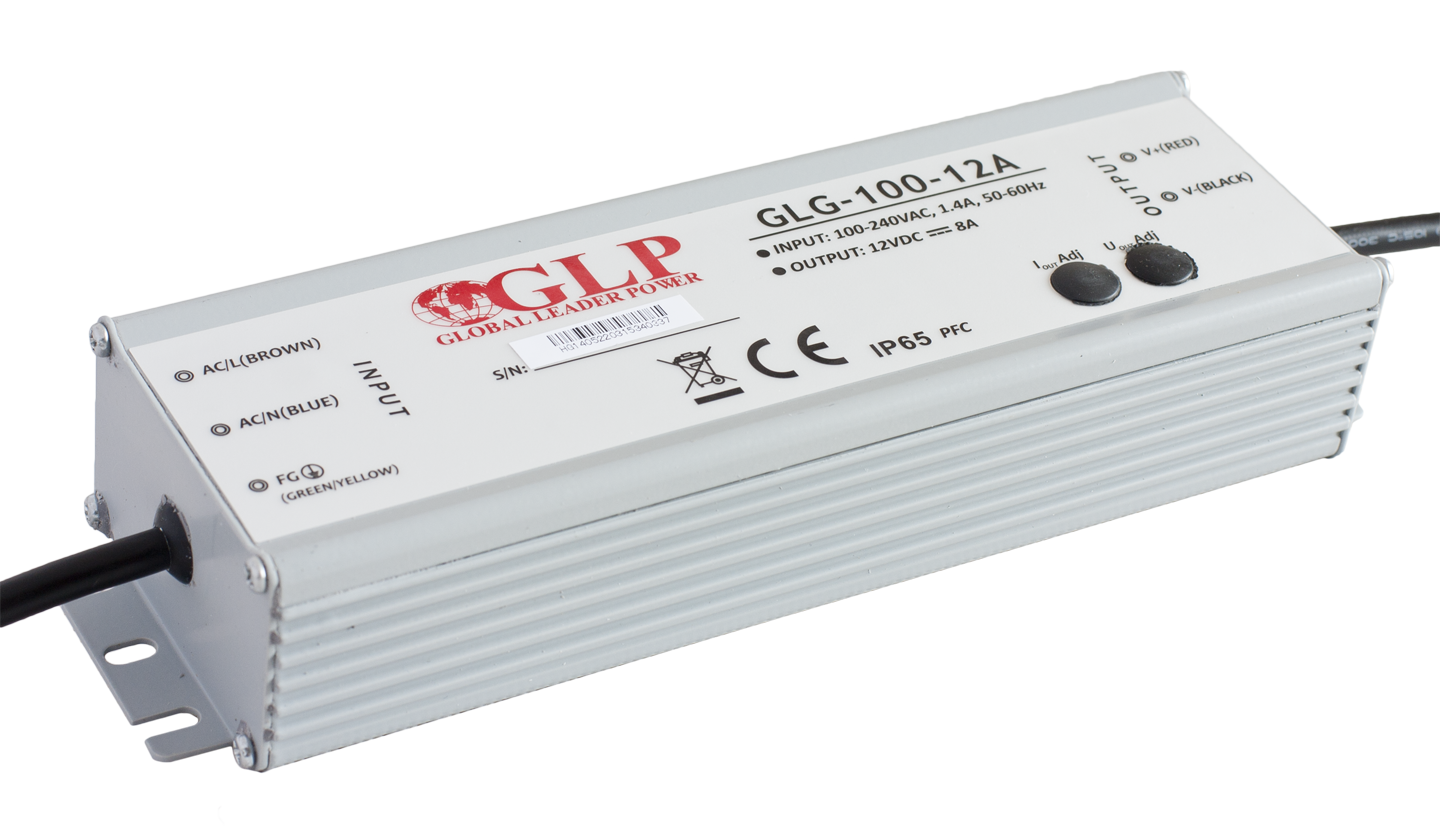

Alimentatore 100W Single Output Switching Power Supply with PFC Function
OUTPUT
Rated Voltage: 12V
Rated Current: 8.5A
Rated Power: 102W
Line Regulation: ± 1%
Load Regulation: ± 2%
Ripple & Noise (max.) [2]: 250mVP-P
Setup, Rise Time[5]: 1300ms, 80ms / 230VAC; 2500ms, 80ms / 115VAC
INPUT
Voltage Range: 90 ÷ 264VAC
Frequency Range: 47 ÷ 63Hz
Efficiency (typ.): 88%
AC current (typ.): 1.6A/115VAC, 1A / 230VAC
Alimentatore 100W Single Output Switching Power Supply with PFC Function
• CV + CV mode power supply
• Built-in active PFC function, PFC > 0.95
• Universal AC input / Full range
• Protections: Short circuit / Over current / Over voltage / Over temperature
• Cooling by free air convection
• 100% full load burn-in test
• Built-in potentiometers to adjust output voltage and current
• IP65 design
GPVP-60-12N
