Features
Modbus Slave device on RS-485
Modbus RTU/ Modbus ASCII protocol
8 digital inputs
8 digital outputs type PNP transistor
Communication parameters configurable by dip-switches
Watch-Dog Alarm
Remotely Configurable
1500 Vac 3-ways Galvanic Isolation
LEDs of signalling on front side for power supply and communication
LEDs of signalling on front side for digital inputs and outputs state
Connection by removable screw terminals
High Accuracy
CE mark
DIN rail mounting in compliance with EN-50022
General Description

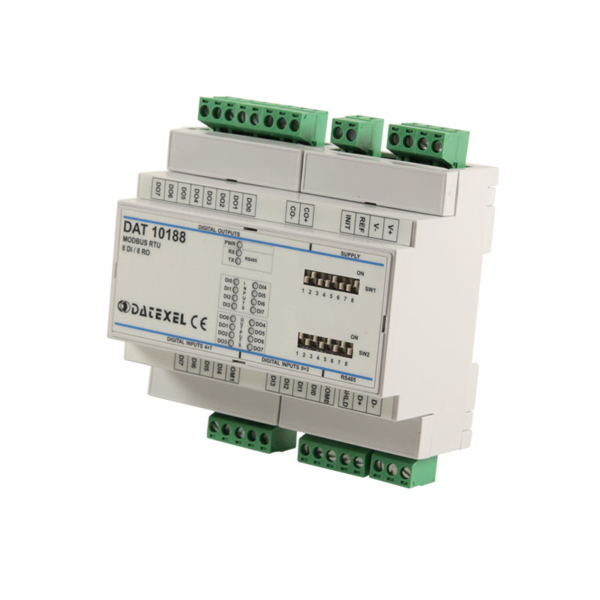

The device DAT10188 is able to acquire up to 8 digital inputs with connection NPN or PNP and to drive up to 8 digital outputs type PNP transistor. The data are
transmitted with MODBUS RTU / MODBUS ASCII protocol over the RS-485 network.
To ensure the plant safety, a Watch-Dog timer alarm is provided.
The isolation between the parts of circuit removes eventual ground-loop effects, allowing the use of the device even in the heavy environmental conditions.
The device is housed in a 6 module DIN rough self-extinguishing plastic box for mounting on EN-50022 standard DIN rail.
