Features
Configurable input for RTD, mV, Resistance and Potentiometer
Galvanic isolation at 1500 Vac
4 ÷ 20 mA configurable output on current loop
Configurable by Personal Computer by cable CVPROG
High accuracy
On-field reconfigurable
EMC compliant – CE mark
Suitable for DIN B in-head mounting
Option for DIN rail mounting in compliance with EN 50022 (DIN RAIL Option)
General Description
The isolated transmitter DAT1061 is able to execute many functions such as : measure and linearisation of the temperature characteristic of RTDs sensors, conversion of a linear resistance variation, conversion of a voltage signal even coming from a potentiometer connected on its input.
The measured values are converted in a 4÷20 mA current signal. The device guarantees high accuracy and performance stability both in time and in temperature.
The programming of the device is made by a Personal Computer using the software PROSOFT and the cable CVPROG, both developed and provided by DATEXEL. By PROSOFT , that runs under the operative system “WindowsTM”, it is possible to configure the transmitter to interface it with the most used sensors .
In case of sensors with a no-standard output characteristic, it is possible to execute, via software, a “Custom” linearisation (per step) to obtain an output linearised signal .
For Resistance and RTDs sensors it is possible to program the cable compensation with 3 or 4 wires.
It is possible to set the minimum and maximum values of input and output ranges in any point of the scale, keeping the minimum span shown in the table below.
Moreover it is available the option of alarm for signal interruption (burn-out) that allows to set the output value as high or low out of scale .
On the device is provided the function “Damping” that allows the user to set a programmable filter up to 30 seconds to reduce eventual sudden variations of the input signal.
The 1500 Vac isolation between input and power supply/output eliminates the effects of all ground loops eventually existing and allows the use of the transmitter in heavy environmental conditions found in industrial applications.

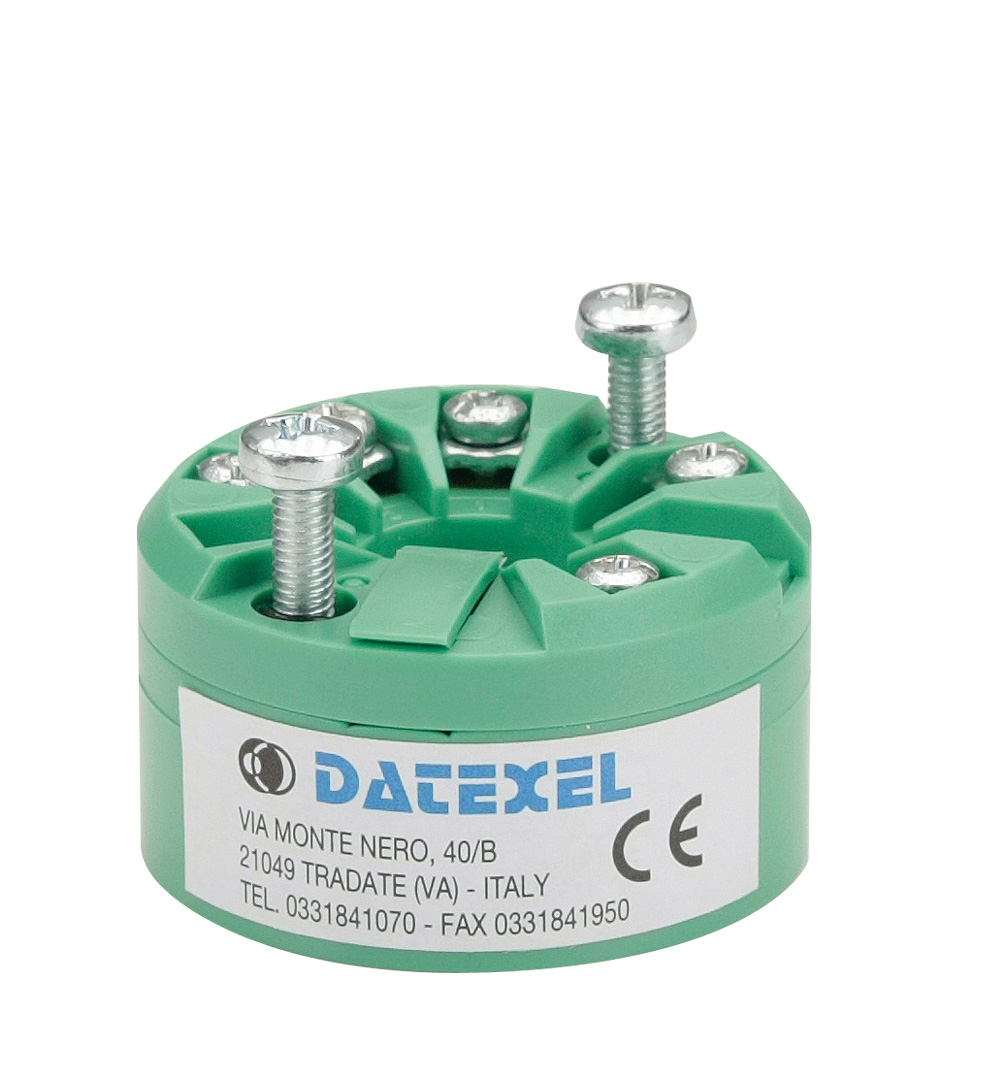

It is housed in a self-extinguish plastic enclosure suitable for DIN B in-head mounting. Moreover ( by proper mounting kit ) it is possible to mount the DAT 1061 on DIN rail.
