Features
Interface Ethernet 10/100 Base-T, Modbus TCP Server
4 isolated output channels
Configurable Analog Outputs for mA and Volt
Isolated power source for each channel to power passive loads
Integrated web server to set the analog outputs via browser
Remotely programmable
Connection by removable screw-terminals
LED signalling for Link/Act Ethernet, power supply
Galvanic isolation on all the ways
EMC compliant – CE mark
In compliance to EN-50022 DIN rail mounting
General Description

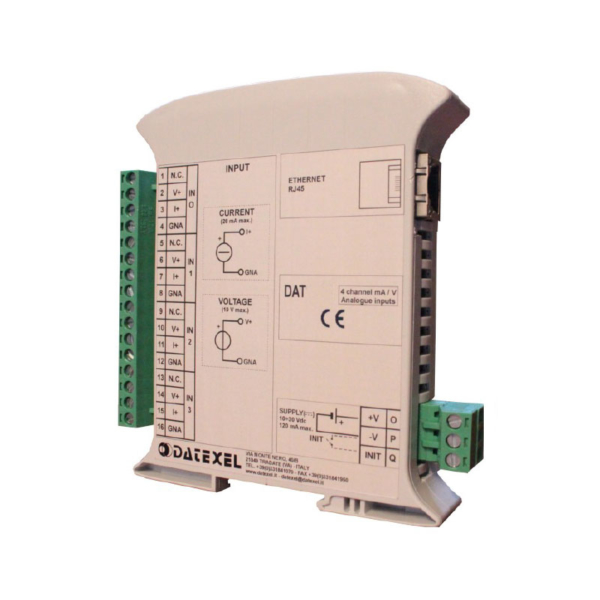

The DAT8024 module is a Modbus TCP server unit that can generate up to 4 analog output signals via digital commands.
To the outputs it is possible to connect active or passive loop current up to 20 mA or voltage signals up to 10 V.
The output channels are electrically isolated from each other.
For each channel is provided an isolated power source for powering passive loop current.
The device guarantees high accuracy and a stable measure versus time and temperature. In order to ensure the safety plant, the device is provided with a Watch-Dog Timer system. The Ethernet interface allows reading and writing in real time the values of the internal registers of the device.
The LEDs of signalling of Ethernet activity and power supply allow a direct monitoring of the system functionality.
The built-in Web Server of DAT8024 allows the remote visualization, setting of the analog outputs and the access to the main Ethernet programming parameters. The device is also configurable by the software Dev9K, a free IDE developed by DATEXEL.
The connection is made by removable screw-terminals (inputs and power supply) and RJ45 plug (Ethernet).
The device DAT8024 realizes a full electrical isolation between the lines, introducing a valid protection against the effects of all ground loops eventually existing in industrial applications.
The device is housed in a rough self-extinguishing plastic enclosure which, thanks to its thin profile of 22.5 mm only, allows a high density mounting on EN-50022 standard DIN rail.
