48,50€

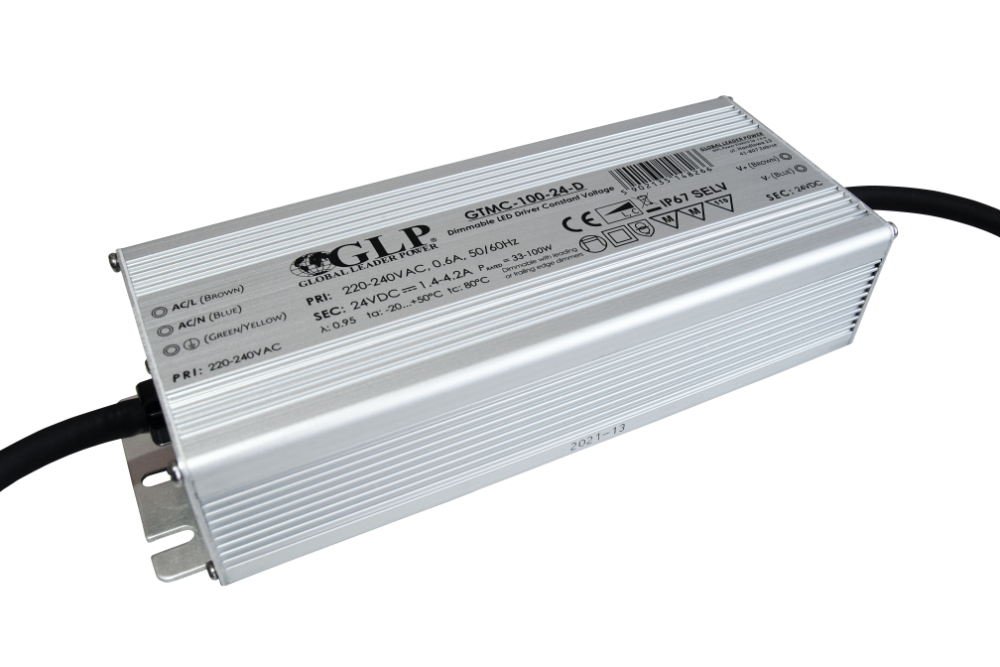

Alimentatore 100W PWM style output LED Triac Dimmable Constant Voltage Power Supply_Aluminium Case
OUTPUT
Rated Voltage: 24V ±5%
Rated Current: 4.2A
Rated Power: 100W
Dimming Range: 1-100%
Line Regulation: ± 2%
Load Regulation: ± 2%
Ripple &; Noise (max.) [2]: 300mVP-P
Setup[4]: ≤ 500ms / full load
INPUT
Voltage Range: 220 ÷ 240VAC
Frequency Range: 50 ÷ 60Hz
Rated Power: 115W
Efficiency (typ.): ≥ 90% / full load
AC current (typ.): 0.60A/ full load
Inrush current (max.): 45A / 500μs (Cold start)
Alimentatore LED 100W PWM style output LED Triac Dimmable Constant Voltage Power Supply
• Constant voltage design
• European AC input range
• Protections: Overload / Over voltage / Short circuit
• Cooling by free air convection
• Isolation class I
• Fully encapsulated with IP67 level
• Suitable to work with AC triac dimmers
GPVP-40-24
