30,55€

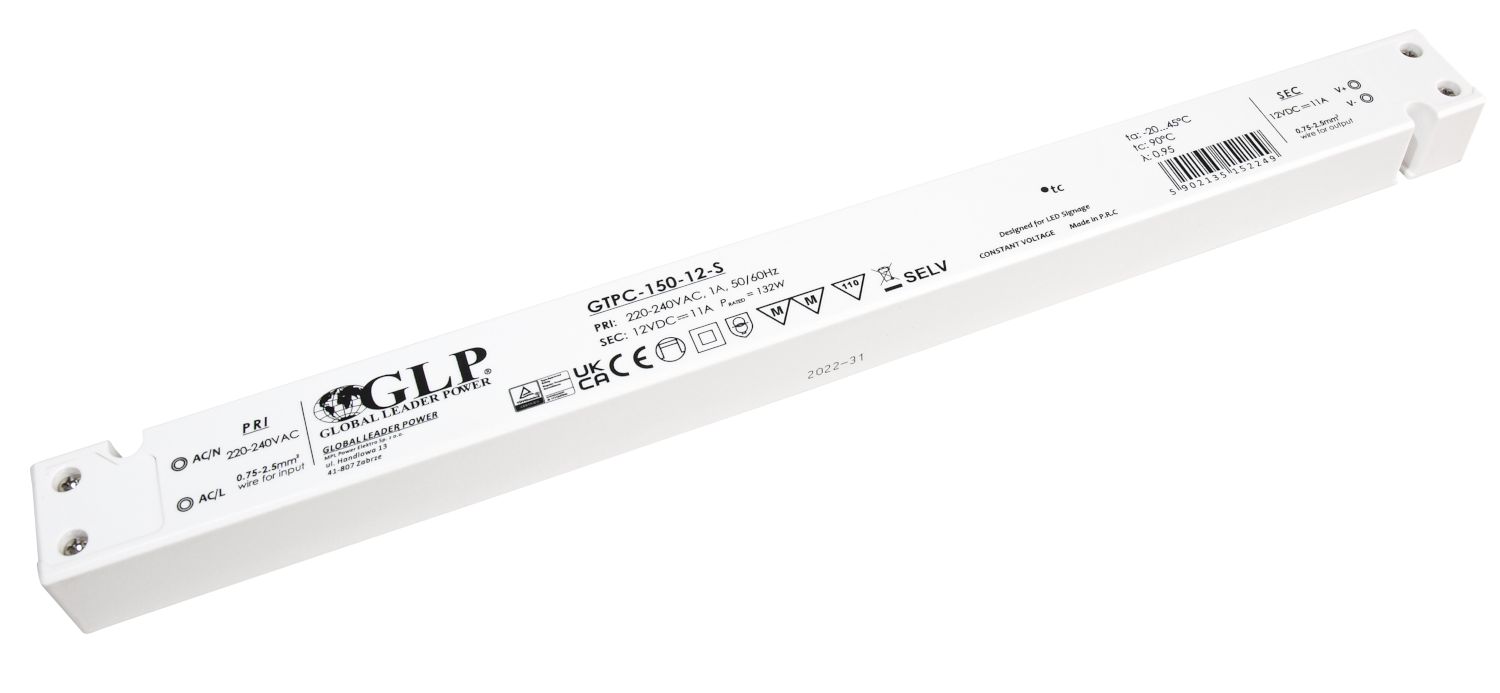

Alimentatore 150W LED Power Supply (CV)
OUTPUT
Rated Voltage: 12V
Rated Current: 11A
Rated Power: 132W
Line Regulation: ± 2%
Load Regulation: ± 2%
Ripple & Noise (max.) [2]: 150mVP-P
Setup Time[4]: 500ms
INPUT
Voltage Range: 180 ÷ 264VAC
Frequency Range: 47 ÷ 63Hz
Efficiency (typ.): 92%
AC current (typ.): 1.0A
Inrush current (max.): 65A/230VAC
Alimentatore LED 100W PWM style output LED Triac Dimmable Constant Voltage Power Supply
Constant voltage PWM style output
• Constant voltage design
• European AC input range
• Protections: Over current/Short-circuit/Over-temperature
• Built-in active PFC function
• Cooling by free air convection
• Isolation class II
• Ultra thin and slim case size
GPVP-25-24
