39,60€

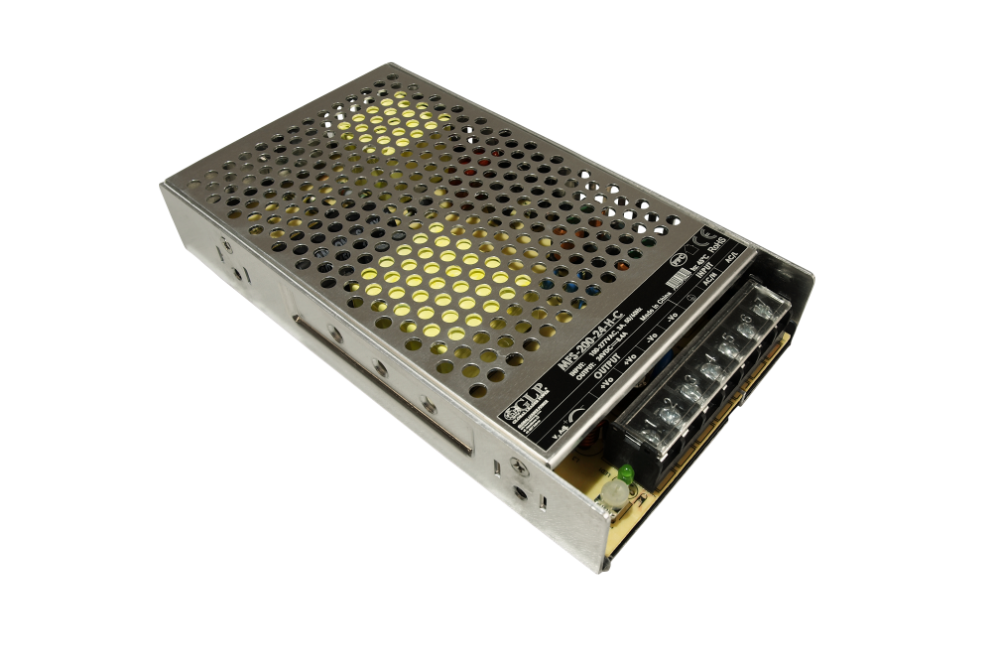

Alimentatore LED Switching 200W, Funzione PFC a Tensione o Corrente Costanti.
OUTPUT
Rated Voltage: 12V
Rated Current: 16.7A
Rated Power: 200.4W
Line Regulation: ± 0.5%
Load Regulation: ± 0.5%
Ripple & Noise (max.) [2]: 150mVP-P
Hold Up Time: 8ms/ 230VAC at full load
INPUT
Voltage Range: 85 ÷ 305VAC; 120 ÷ 430VDC
Frequency Range: 47 ÷ 63Hz
Efficiency (typ.): 88%
AC current (typ.): 1.3A/230VAC; 2.5A/115VAC
Inrush current (max.): 65A / 230VAC; 35A / 115 VAC
Alimentatore LED Switching 200W a Tensione o Corrente Costanti. Uscita 24Vcc :
• Universal AC input / Full range
• Built-in active PFC function
• Protections: Over current / Short circuit / Over Voltage / Over temperature
• Compact size with a low 1U profile
• LED indicator for power on
• Wide range of operating temperature range: -30°C to +70°C
• Operating altitude up to 5000m
