Features
Field Bus data acquisition
CAN open protocol
Baud rate and ID Node programmable by dip-switch
Configurable input for V and mA
Four ways 2000 Vac galvanic isolation
EMC compliance – CE Mark
In compliance with EN-50022 DIN rail mounting
DAT 7015
146,00€
| Quantità | Prezzo |
| Below 5 | 146,00€ |
| 5 – 100 | 131,40€ |
| 101 + | 146,00€ |

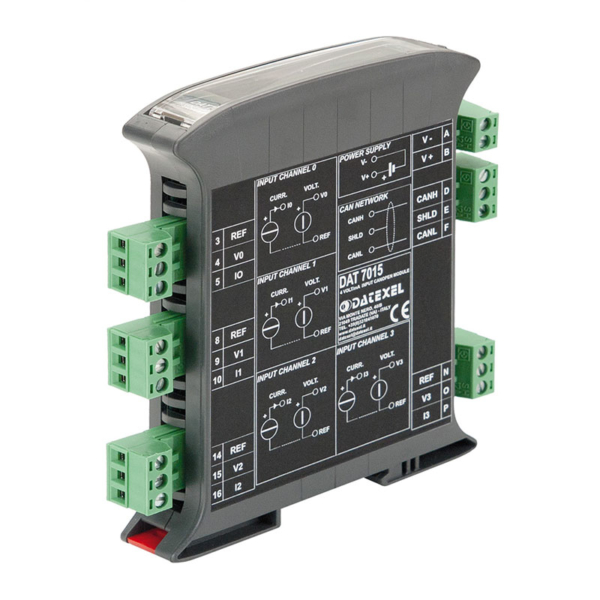

CANopen Slave device 4 analogue voltage or current inputs
General Description
The device DAT 7015 is able to acquire up to 4 voltage signals up to ± 10 V or current signals up to ± 20 mA.
The data are transmitted by the CANopen protocol.
By means of 16 bit converters, the device guarantees high accuracy and a stable measures both versus time and temperature.
The 2000 Vac galvanic isolation between inputs, power supply and data line eliminates the effects of all ground loops eventually existing and allows the use of the device in heavy environmental conditions found in industrial applications.
The DAT 7015 is housed in a rough self-extinguishing plastic enclosure of 22.5 mm thickness, suitable for DIN rail mounting in compliance with the EN 50022 standard .
