Features
Interface Ethernet 10/100 Base-T, Modbus TCP Server
4 isolated input channels
Analog inputs for mA and Volt
Isolated power source for each channel to power passive sensors
Integrated web server to acquire the status of the analog inputs via browser
Remotely programmable
Connection by removable screw-terminals
LED signalling for Link/Act Ethernet, power supply
Galvanic isolation on all the ways
EMC compliant – CE mark
In compliance to EN-50022 DIN rail mounting
General Description

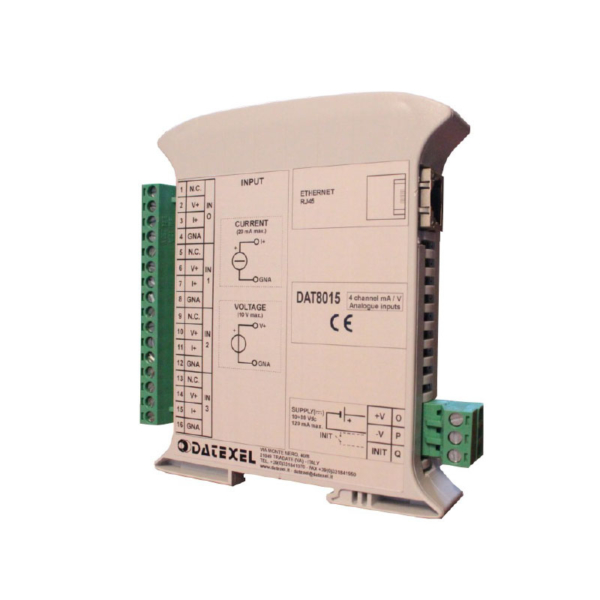

The DAT8015 module is a Modbus TCP server unit that can convert up to 8 analog signals applied to the input in engineering units in digital format.
The inputs can be connected to sensors with current or voltage output.
The input channels are electrically isolated from each other.
For each input channel is provided an isolated power source for the power supply of passive sensors.
The device guarantees high accuracy and a stable measure versus time and temperature. In order to ensure the safety plant, the device is provided with a Watch-Dog Timer system. The Ethernet interface allows reading and writing in real time the values of the internal registers of the device.
The LEDs of signalling of Ethernet activity and power supply allow a direct monitoring of the system functionality.
The built-in Web Server of DAT8015 allows the remote visualization, acquisition of the analogue inputs and the access to the main Ethernet programming parameters.
The device is also configurable by the software Dev9K, a free IDE developed by DATEXEL.
The connection is made by removable screw-terminals (inputs and power supply) and RJ45 plug (Ethernet).
The device DAT8015 realizes a full electrical isolation between the lines, introducing a valid protection against the effects of all ground loops eventually existing in industrial applications.
The device is housed in a rough self-extinguishing plastic enclosure which, thanks to its thin profile of 22.5 mm only, allows a high density mounting on EN-50022 standard DIN rail.
