Remote Modbus TCP/IP server 8 Digital Inputs 4 Relay Outputs . Series 8000 .
Interface Ethernet 10/100 Base-T, Modbus TCP Server
N.8 Digital inputs
N.4 Relay outputs (SPDT)
Built-in Web server to acquire the digital inputs state and drive the digital outputs via web browser
Remotely programmable
Connection by removable screw-terminals
LED signalling for Link/Act Ethernet, power supply
LED signalling for digital inputs and outputs state
Galvanic isolation on all the ways
EMC compliant – CE mark
In compliance to EN-50022 DIN rail mounting

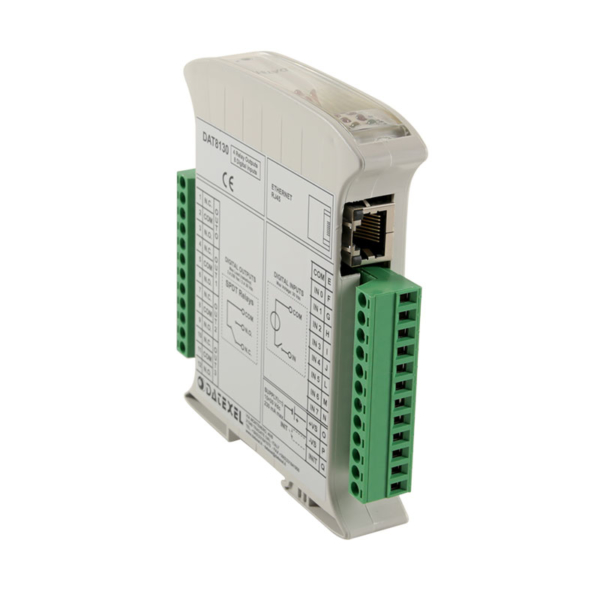

The device DAT8130 is a Modbus TCP server unit with 8 digital input channels and 4 relay outputs type SPDT.
For the digital inputs are available up to four 32 bit counters with measure of frequency up to 300 Hz.
The Ethernet interface allows to read and write in real time the value of device’s internal registers.
The built-in Web Server of DAT8130 allows the remote visualization and acquisition of the digital inputs state, to drive the relay outputs and access to and configure the main Ethernet parameters via web browser.
The device is also configurable by the software Dev9K, a free IDE developed by DATEXEL.
The device DAT8130 realizes a full electrical isolation between the lines, introducing a valid protection against the effects of all ground loops eventually existing in industrial applications. The LEDs of signalling of Ethernet activity, input, output state and power supply allow a direct monitoring of the system functionality. The connection is made by removable screw-terminals (inputs, outputs and power supply) and RJ45 plug (Ethernet).
The device is housed in a rough self-extinguishing plastic enclosure which, thanks to its thin profile of 22.5 mm only, allows a high density mounting on EN-50022 standard DIN rail.
