Features
Interface Ethernet 10/100 Base-T, Modbus TCP Server
N.16 Digital inputs
Built-in Web server to acquire the digital inputs state via web browser
Remotely programmable
Connection by removable screw-terminals
LED signalling for Link/Act Ethernet, power supply
LED signalling for digital inputs state
Galvanic isolation on all the ways
EMC compliant – CE mark
In compliance to EN-50022 DIN rail mounting
General Description

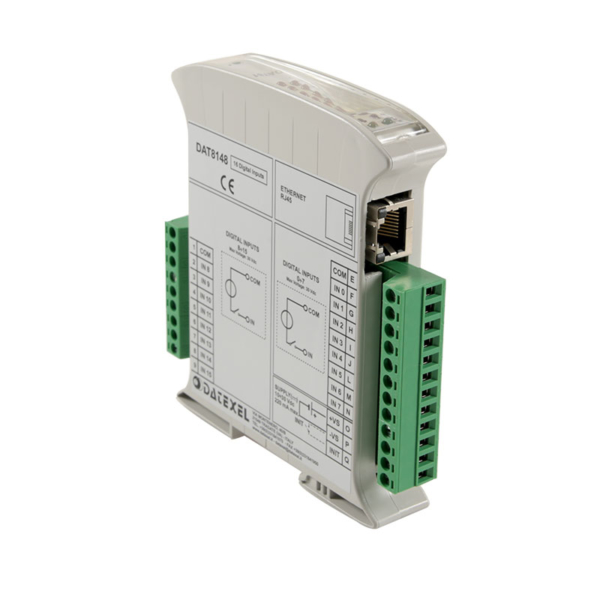

The device DAT8148 is a Modbus TCP server unit with 16 digital input channels.
For the digital inputs are available up to 4 counters at 32 bit with measure of frequency up to 300 Hz.
The Ethernet interface allows to read and write in real time the value of device’s internal registers.
The built-in Web Server of DAT8148 allows the remote visualization and acquisition of the digital inputs state and access to and configure the main Ethernet parameters via web browser.
The device is also configurable by the software Dev9K, a free IDE developed by DATEXEL.
The device DAT8148 realizes a full electrical isolation between the lines, introducing a valid protection against the effects of all ground loops eventually existing in industrial applications. The LEDs of signalling of Ethernet activity, input and power supply allow a direct monitoring of the system functionality.
The connection is made by removable screw-terminals (inputs and power supply) and RJ45 plug (Ethernet).
The device is housed in a rough self-extinguishing plastic enclosure which, thanks to its thin profile of 22.5 mm only, allows a high density mounting on EN-50022 standard DIN rail.
