Features
Field Bus data acquisition
CAN open protocol
Baud rate and ID Node programmable by dip-switch
8 digital inputs
8 digital outputs, PNP type
Led of signalling for inputs and outputs status
Over-temperature and over-current protection
Four ways 2000 Vac galvanic isolation
EMC compliance – CE Mark
In compliance to EN-50022 DIN rail mounting
General Description

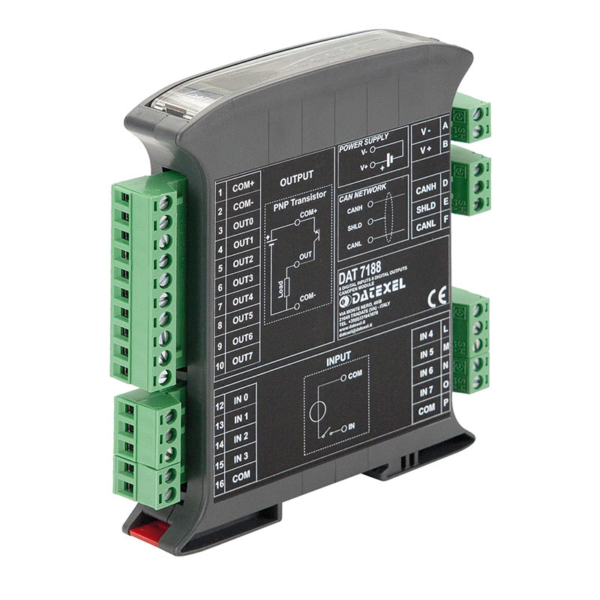

The device DAT 7188 is able to acquire up to 8 digital inputs and to drive up to 8 transistor outputs. The data are transmitted by the CANopen protocol.
The 2000 Vac galvanic isolation between inputs, outputs, power supply and data line eliminates the effects of all ground loops eventually existing and allows the use of the device in heavy environmental conditions found in industrial applications.
The DAT 7188 is housed in a rough self-extinguishing plastic enclosure of 22.5 mm thickness, suitable for DIN rail mounting in compliance with the EN 50022 standard .
